Segmented deformable mirrors

We will use segmented deformable mirrors and simulate the PSFs that result from segment pistons and tilts. We will compare this functionality against Poppy, another optical propagation package.

First we’ll import all packages.

import os
import numpy as np
import matplotlib.pyplot as plt
import astropy.units as u
import hcipy
import poppy
# Parameters for the pupil function
pupil_diameter = 0.019725 # m
gap_size = 90e-6 # m
num_rings = 3
segment_flat_to_flat = (pupil_diameter - (2 * num_rings + 1) * gap_size) / (2 * num_rings + 1)
focal_length = 1 # m

# Parameters for the simulation
num_pix = 1024
wavelength = 638e-9
num_airy = 20
sampling = 4
norm = False

Instantiate the segmented mirrors

HCIPy SM: hsm

We need to generate a pupil grid for the aperture, and a focal grid and propagator for the focal plane images after the DM.

# HCIPy grids and propagator
pupil_grid = hcipy.make_pupil_grid(dims=num_pix, diameter=pupil_diameter)

focal_grid = hcipy.make_focal_grid(sampling, num_airy,
                                   pupil_diameter=pupil_diameter,
                                   reference_wavelength=wavelength,
                                   focal_length=focal_length)
focal_grid = focal_grid.shifted(focal_grid.delta / 2)

prop = hcipy.FraunhoferPropagator(pupil_grid, focal_grid, focal_length)

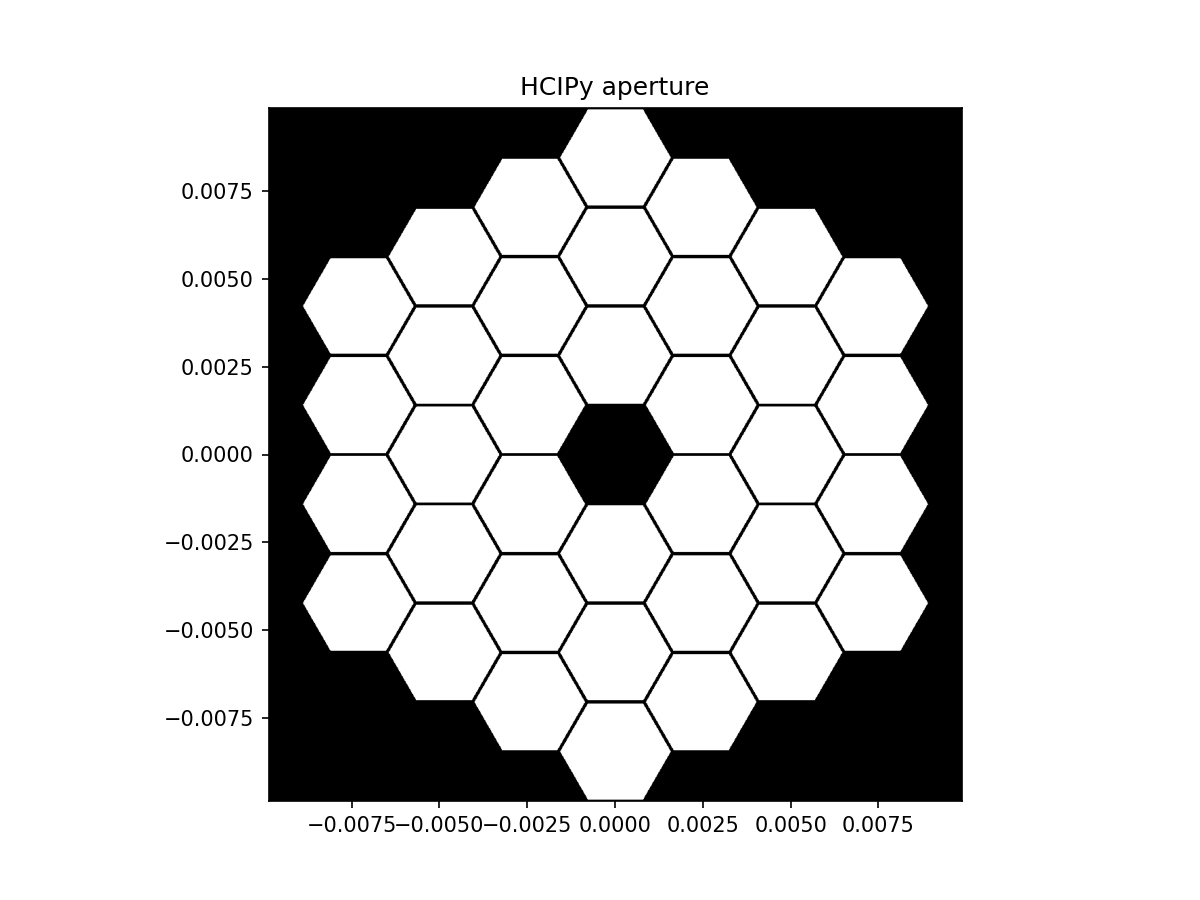

We generate a segmented aperture for the segmented mirror. For convenience, we’ll use the HiCAT pupil without spiders. We’ll use supersampling to better resolve the segment gaps.

aper, segments = hcipy.make_hexagonal_segmented_aperture(num_rings,
                                                         segment_flat_to_flat,
                                                         gap_size,
                                                         starting_ring=1,
                                                         return_segments=True)

aper = hcipy.evaluate_supersampled(aper, pupil_grid, 1)
segments = hcipy.evaluate_supersampled(segments, pupil_grid, 1)

plt.title('HCIPy aperture')
hcipy.imshow_field(aper, cmap='gray')
<matplotlib.image.NonUniformImage at 0x7ba8e2eb2490>
../../_images/output_6_1.png

Now we make the segmented mirror. In order to be able to apply the SM to a plane, that plane needs to be a Wavefront, which combines a Field - here the aperture - with a wavelength, here wavelength.

In this example here, since the SM doesn’t have any extra effects on the pupil since it’s still completely flat, we don’t actually have to apply the SM, although of course we could.

# Instantiate the segmented mirror
hsm = hcipy.SegmentedDeformableMirror(segments)

# Make a pupil plane wavefront from aperture
wf = hcipy.Wavefront(aper, wavelength)

# Apply SM if you want to
wf = hsm(wf)

plt.figure(figsize=(8, 8))
plt.title('Wavefront intensity at HCIPy SM')
hcipy.imshow_field(wf.intensity, cmap='gray')
plt.colorbar()
plt.show()
../../_images/output_8_0.png

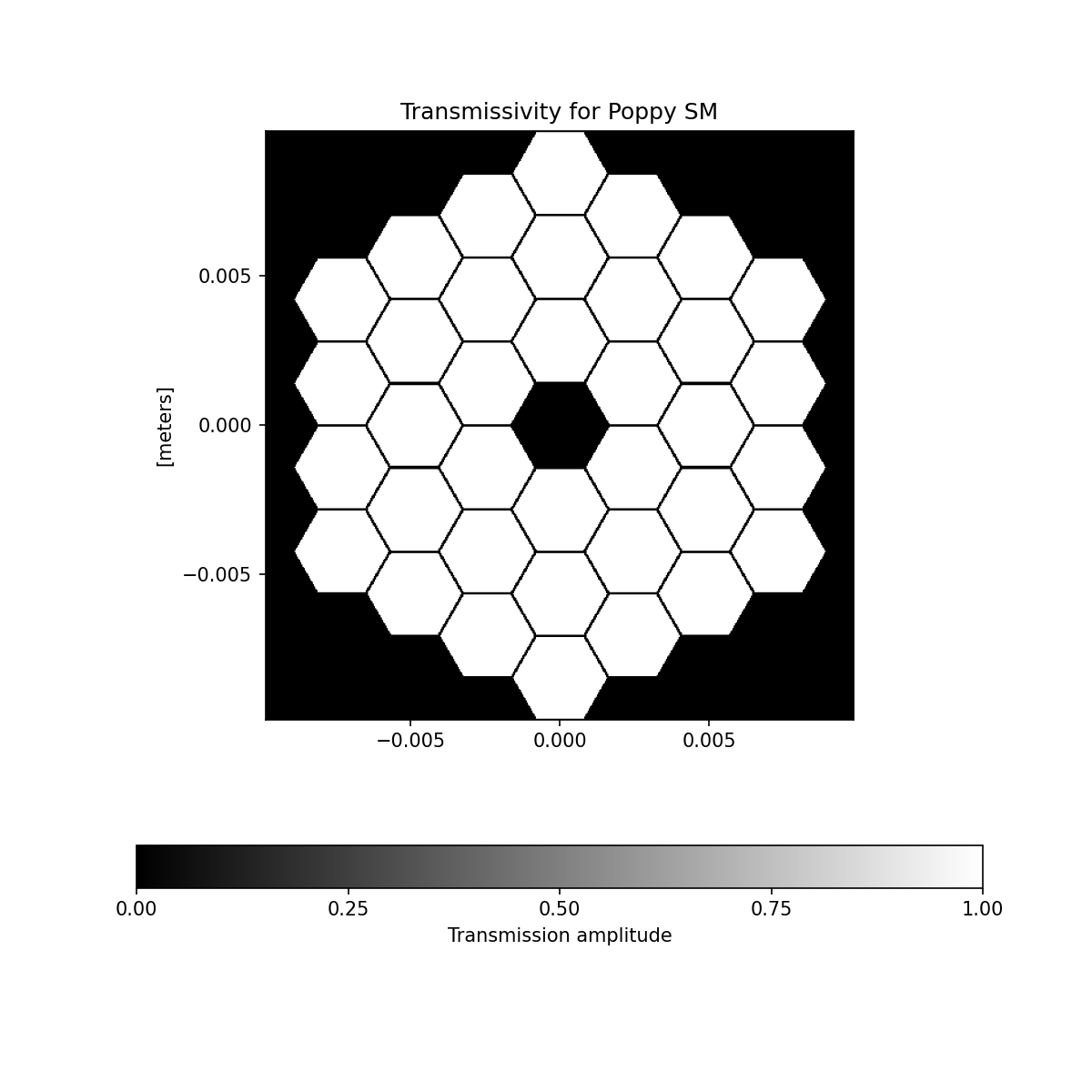

Poppy SM: psm

We’ll do the same for Poppy.

psm = poppy.dms.HexSegmentedDeformableMirror(name='Poppy SM',
                                             rings=3,
                                             flattoflat=segment_flat_to_flat*u.m,
                                             gap=gap_size*u.m,
                                             center=False)
# Display the transmission and phase of the poppy sm
plt.figure(figsize=(8, 8))
psm.display(what='amplitude')
<Axes: title={'center': 'Transmissivity for Poppy SM'}, ylabel='[meters]'>
../../_images/output_11_1.png

Create reference images

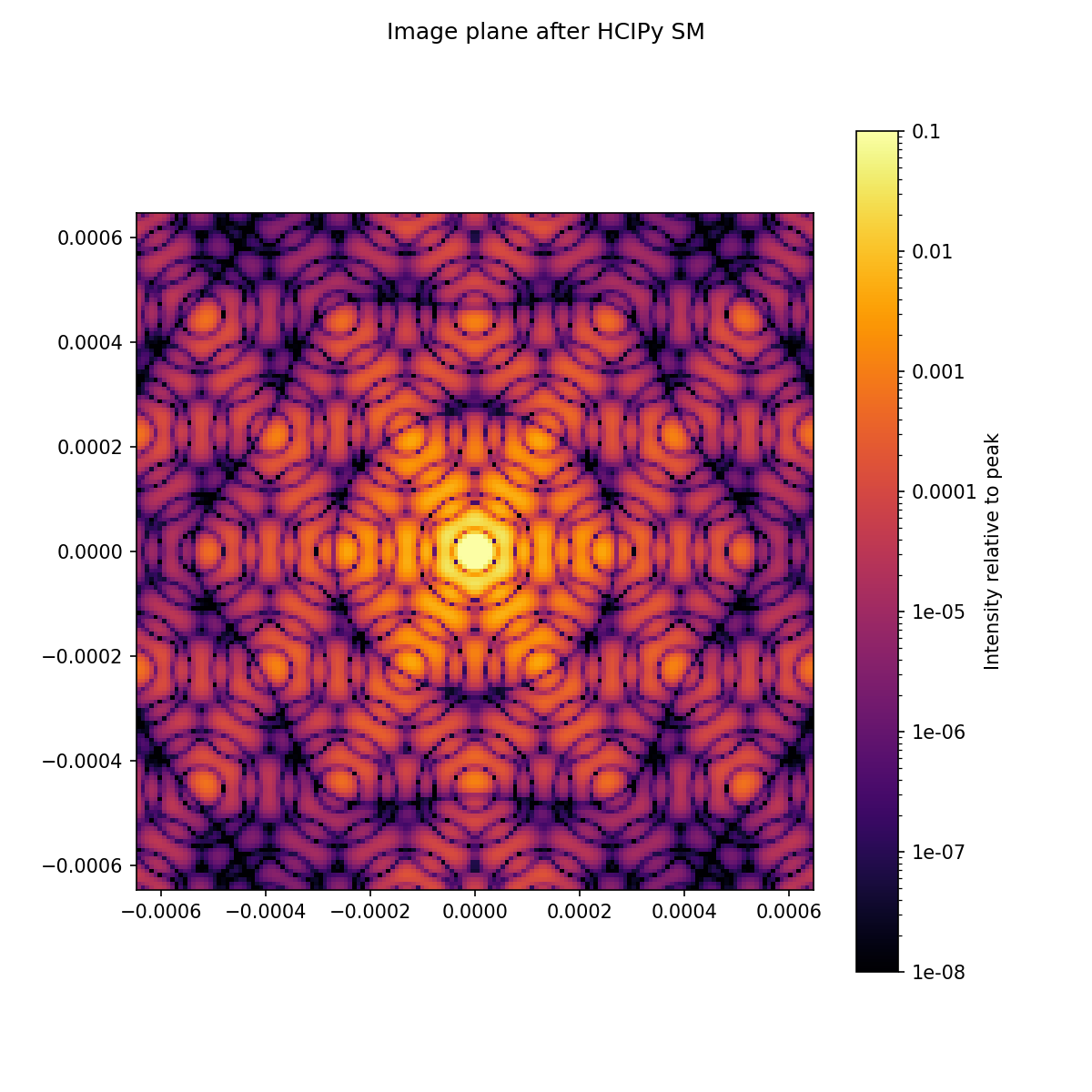

HCIPy reference image

We need to apply the SM to the wavefront in the pupil plane and then propagate it to the image plane.

# Apply SM to pupil plane wf
wf_sm = hsm(wf)

# Propagate from SM to image plane
im_ref_hc = prop(wf_sm)
# Display intensity and phase in image plane
plt.figure(figsize=(8, 8))
plt.suptitle('Image plane after HCIPy SM')

# Get normalization factor for HCIPy reference image
norm_hc = np.max(im_ref_hc.intensity)

hcipy.imshow_psf(im_ref_hc, normalization='peak')
<matplotlib.image.NonUniformImage at 0x7ba8e2df6010>
../../_images/output_14_1.png

Poppy reference image

For the Poppy propagation, we need to make an optical system of which we then calculate the PSF. We match HCIPy’s image scale with Poppy.

# Make an optical system with the Poppy SM and a detector
psm.flatten()

pxscle = np.degrees(wavelength / pupil_diameter) * 3600 / sampling
fovarc = pxscle * 160

osys = poppy.OpticalSystem()
osys.add_pupil(psm)
osys.add_detector(pixelscale=pxscle, fov_arcsec=fovarc, oversample=1)
<poppy.poppy_core.Detector at 0x7ba8e2de6d10>
# Calculate the PSF
psf = osys.calc_psf(wavelength)
plt.figure(figsize=(8, 8))
poppy.display_psf(psf, vmin=1e-9, vmax=0.1)

# Get the PSF as an array
im_ref_pop = psf[0].data
print('Poppy PSF shape: {}'.format(im_ref_pop.shape))

# Get normalization from Poppy reference image
norm_pop = np.max(im_ref_pop)
Poppy PSF shape: (160, 160)
../../_images/output_17_1.png

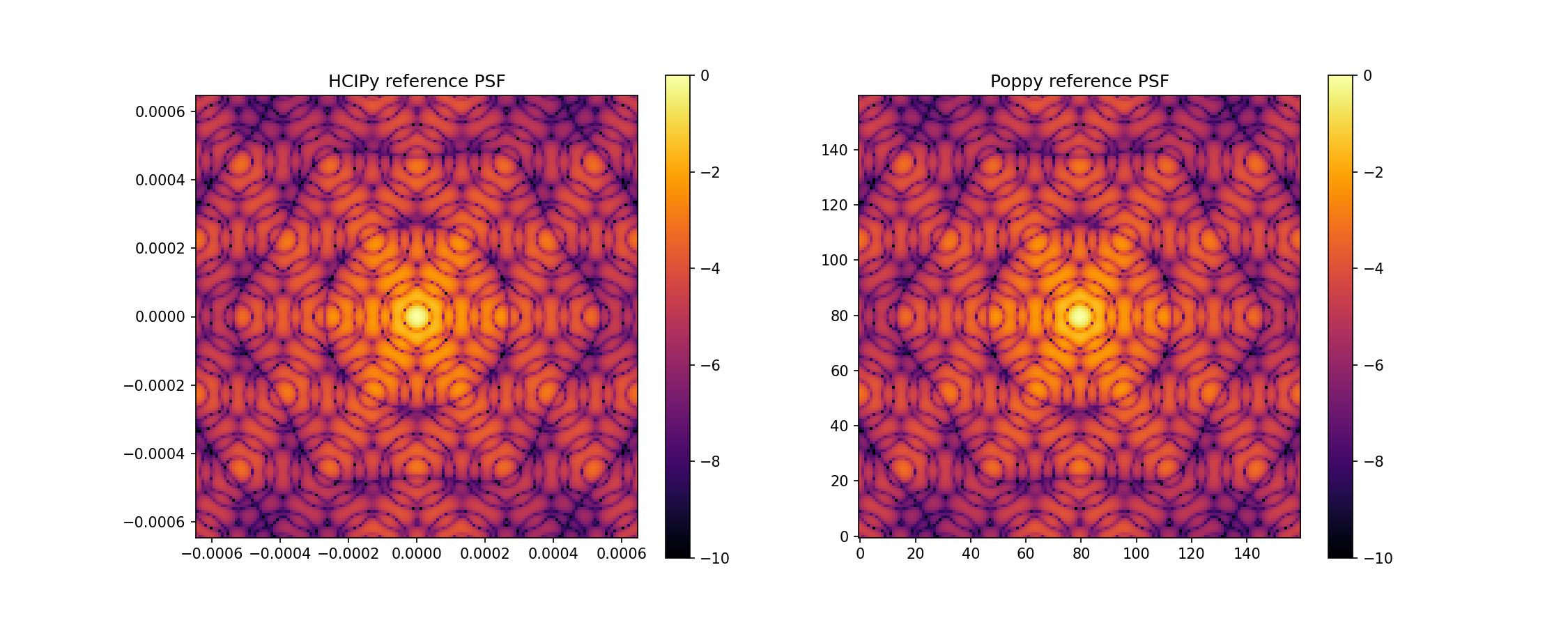

Both reference images side-by-side

plt.figure(figsize=(15,6))

plt.subplot(1, 2, 1)
hcipy.imshow_field(np.log10(im_ref_hc.intensity / norm_hc), vmin=-10, cmap='inferno')
plt.title('HCIPy reference PSF')
plt.colorbar()

plt.subplot(1, 2, 2)
plt.imshow(np.log10(im_ref_pop / norm_pop), origin='lower', vmin=-10, cmap='inferno')
plt.title('Poppy reference PSF')
plt.colorbar()
<matplotlib.colorbar.Colorbar at 0x7ba8e2797950>
../../_images/output_19_1.png
ref_dif = im_ref_pop / norm_pop - im_ref_hc.intensity.shaped / norm_hc

lims = np.max(np.abs(ref_dif))

plt.figure(figsize=(15, 6))
plt.suptitle(f'Maximum relative error: {lims:0.2g} relative to the peak intensity')
plt.subplot(1, 2, 1)
plt.imshow(ref_dif, origin='lower', vmin=-lims, vmax=lims, cmap='RdBu')
plt.title('Full image')
plt.colorbar()
plt.subplot(1, 2, 2)
plt.imshow(ref_dif[60:100,60:100], origin='lower', vmin=-lims, vmax=lims, cmap='RdBu')
plt.title('Zoomed in')
plt.colorbar()
<matplotlib.colorbar.Colorbar at 0x7ba8e271a810>
../../_images/output_20_1.png

Applying aberrations

# Define function from rad of phase to m OPD
def aber_to_opd(aber_rad, wavelength):
    aber_m = aber_rad * wavelength / (2 * np.pi)
    return aber_m

aber_rad = 4.0

print('Aberration: {} rad'.format(aber_rad))
print('Aberration: {} m'.format(aber_to_opd(aber_rad, wavelength)))

# Poppy and HCIPy have a different way of indexing segments
# Figure out which index to poke on which mirror
poppy_index_to_hcipy_index = []
for n in range(1, num_rings + 1):
    base = list(range(3 * (n - 1) * n + 1, 3 * n * (n + 1) + 1))

    poppy_index_to_hcipy_index.extend(base[2 * n::-1])
    poppy_index_to_hcipy_index.extend(base[:2 * n:-1])

poppy_index_to_hcipy_index = {j: i for i, j in enumerate(poppy_index_to_hcipy_index) if j is not None}

hcipy_index_to_poppy_index = {j: i for i, j in poppy_index_to_hcipy_index.items()}
Aberration: 4.0 rad
Aberration: 4.061634147705169e-07 m
# Flatten both SMs just to be sure
hsm.flatten()
psm.flatten()

# Poking segment 35 and 25
for i in [35, 25]:
    hsm.set_segment_actuators(i, aber_to_opd(aber_rad, wavelength) / 2, 0, 0)
    psm.set_actuator(hcipy_index_to_poppy_index[i], aber_to_opd(aber_rad, wavelength) * u.m, 0, 0)

# Display both segmented mirrors in OPD

# HCIPy
plt.figure(figsize=(8,8))
plt.title('OPD for HCIPy SM')
hcipy.imshow_field(hsm.surface * 2, mask=aper, cmap='RdBu_r', vmin=-5e-7, vmax=5e-7)
plt.colorbar()
plt.show()

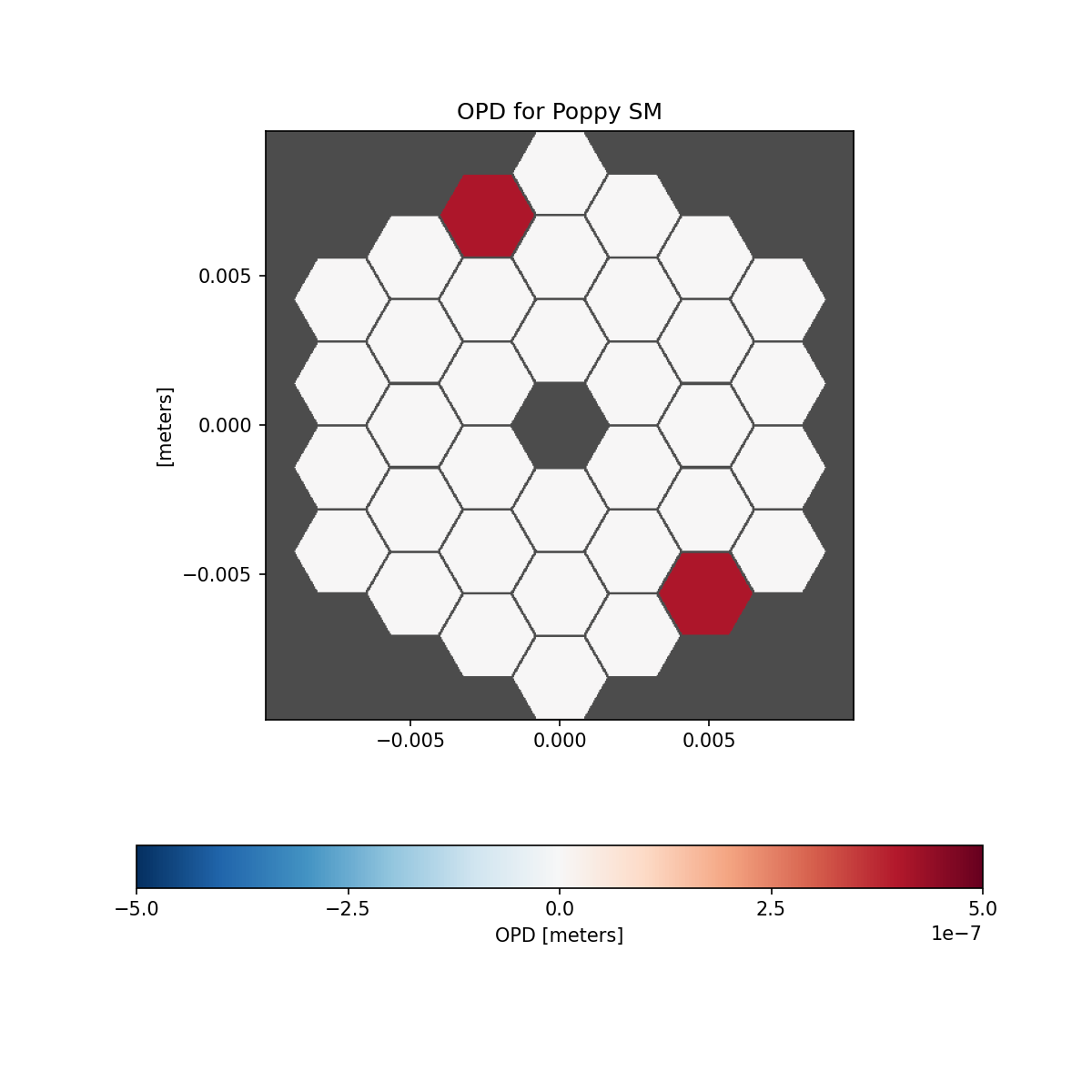

# Poppy
plt.figure(figsize=(8,8))
psm.display(what='opd')
plt.show()
../../_images/output_23_02.png ../../_images/output_23_1.png

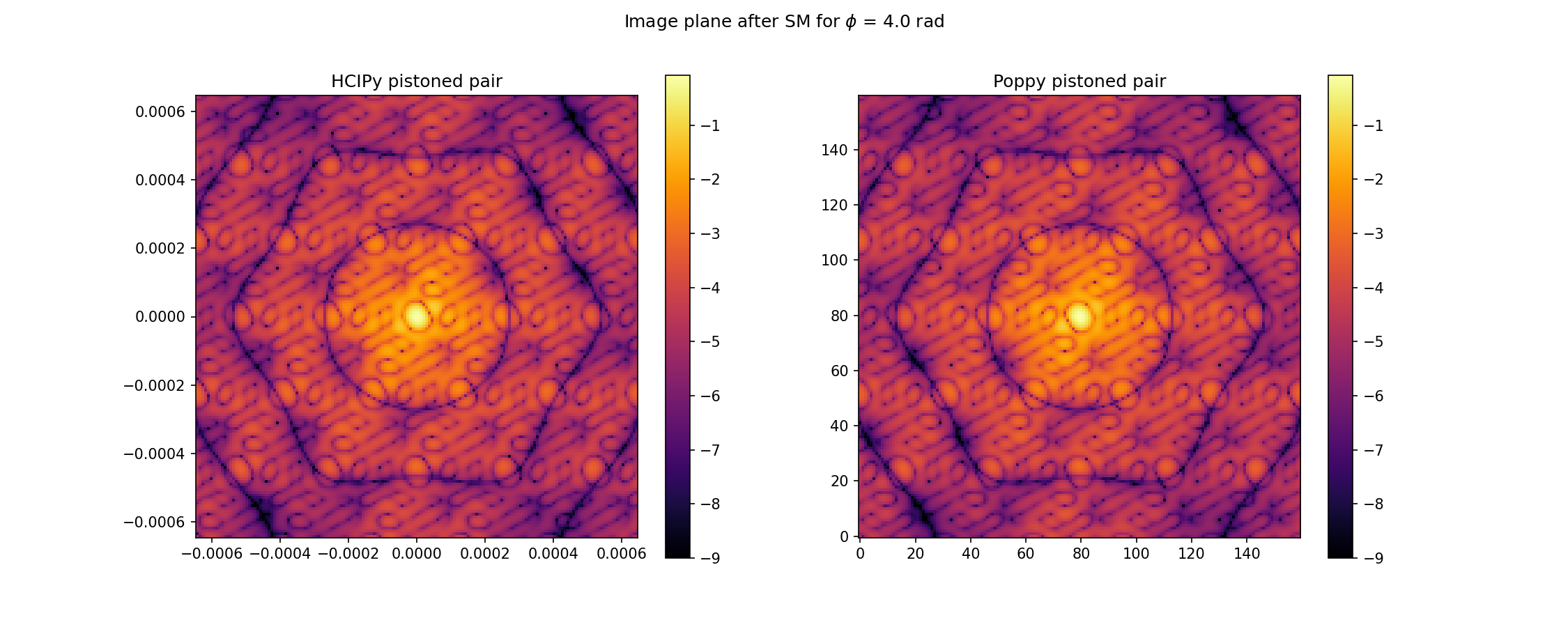

Show focal plane images

### HCIPy
# Apply SM to pupil plane wf
wf_fp_pistoned = hsm(wf)

# Propagate from SM to image plane
im_pistoned_hc = prop(wf_fp_pistoned)

### Poppy
# Calculate the PSF
psf = osys.calc_psf(wavelength)

# Get the PSF as an array
im_pistoned_pop = psf[0].data

### Display intensity of both cases image plane
plt.figure(figsize=(15, 6))
plt.suptitle('Image plane after SM for $\phi$ = ' + str(aber_rad) + ' rad')

plt.subplot(1, 2, 1)
hcipy.imshow_field(np.log10(im_pistoned_hc.intensity / norm_hc), cmap='inferno', vmin=-9)
plt.title('HCIPy pistoned pair')
plt.colorbar()

plt.subplot(1, 2, 2)
plt.imshow(np.log10(im_pistoned_pop / norm_pop), origin='lower', cmap='inferno', vmin=-9)
plt.title('Poppy pistoned pair')
plt.colorbar()
<matplotlib.colorbar.Colorbar at 0x7ba8e1b5ef10>
../../_images/output_25_1.png

A mix of piston, tip and tilt (PTT)

aber_rad_tt = 200e-6
aber_rad_p = 1.8

opd_piston = aber_to_opd(aber_rad_p, wavelength)

### Put aberrations on both SMs
# Flatten both SMs
hsm.flatten()
psm.flatten()

## PISTON
for i in [19, 28, 23, 16]:
    hsm.set_segment_actuators(i, opd_piston / 2, 0, 0)
    psm.set_actuator(hcipy_index_to_poppy_index[i], opd_piston * u.m, 0, 0)

for i in [3, 35, 30, 8]:
    hsm.set_segment_actuators(i, -0.5 * opd_piston / 2, 0, 0)
    psm.set_actuator(hcipy_index_to_poppy_index[i], -0.5 * opd_piston * u.m, 0, 0)

for i in [14, 18, 1, 32, 12]:
    hsm.set_segment_actuators(i, 0.3 * opd_piston / 2, 0, 0)
    psm.set_actuator(hcipy_index_to_poppy_index[i], 0.3 * opd_piston * u.m, 0, 0)

## TIP and TILT
for i in [2, 5, 11, 15, 22]:
    hsm.set_segment_actuators(i, 0, aber_rad_tt / 2, 0.3 * aber_rad_tt / 2)
    psm.set_actuator(hcipy_index_to_poppy_index[i], 0, aber_rad_tt, 0.3 * aber_rad_tt)

for i in [4, 6, 26]:
    hsm.set_segment_actuators(i, 0, -aber_rad_tt / 2, 0)
    psm.set_actuator(hcipy_index_to_poppy_index[i], 0, -aber_rad_tt, 0)

for i in [34, 31, 7]:
    hsm.set_segment_actuators(i, 0, 0, 1.3 * aber_rad_tt / 2)
    psm.set_actuator(hcipy_index_to_poppy_index[i], 0, 0, 1.3 * aber_rad_tt)

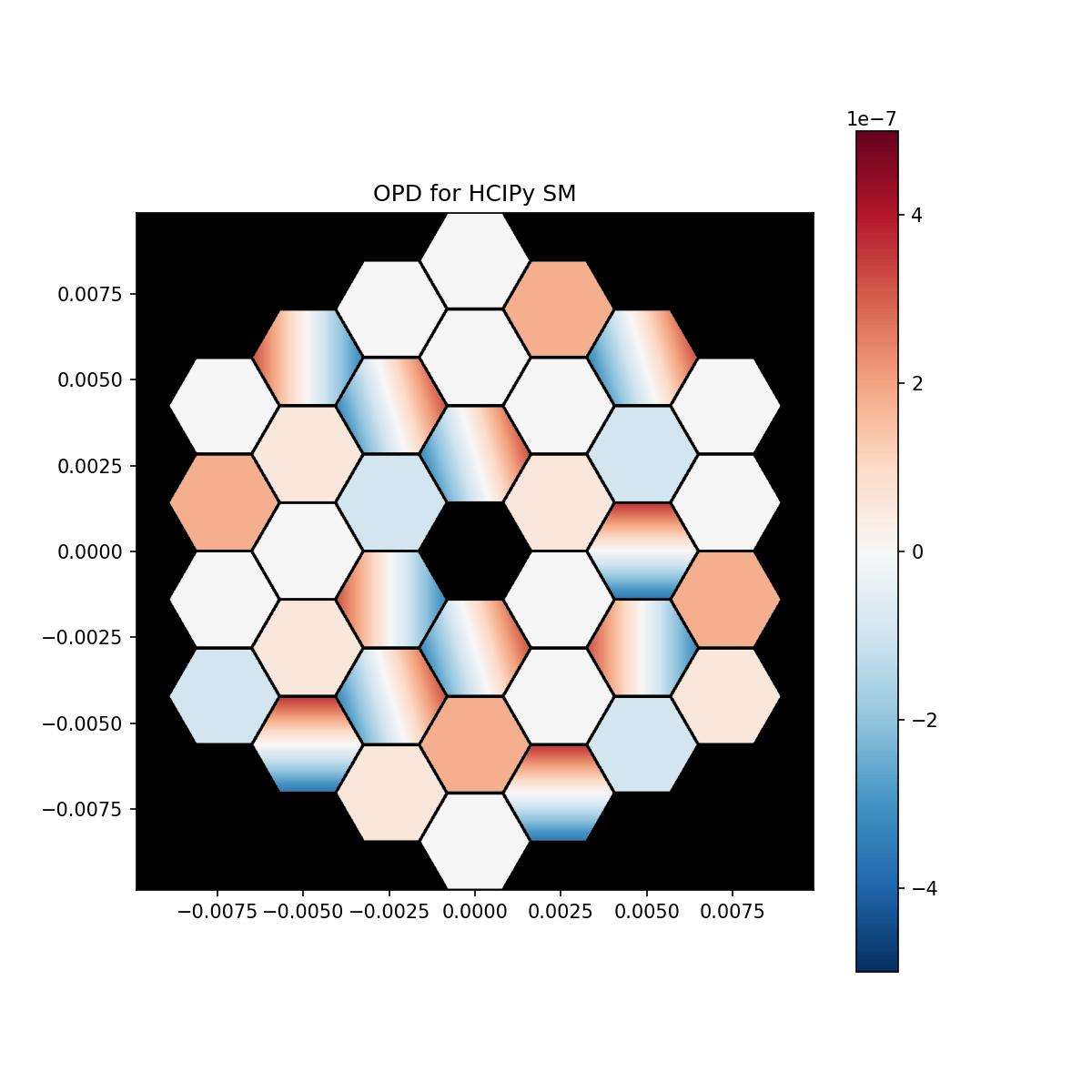

# Display both segmented mirrors in OPD

# HCIPy
plt.figure(figsize=(8,8))
plt.title('OPD for HCIPy SM')
hcipy.imshow_field(hsm.surface * 2, mask=aper, cmap='RdBu_r', vmin=-5e-7, vmax=5e-7)
plt.colorbar()
plt.show()

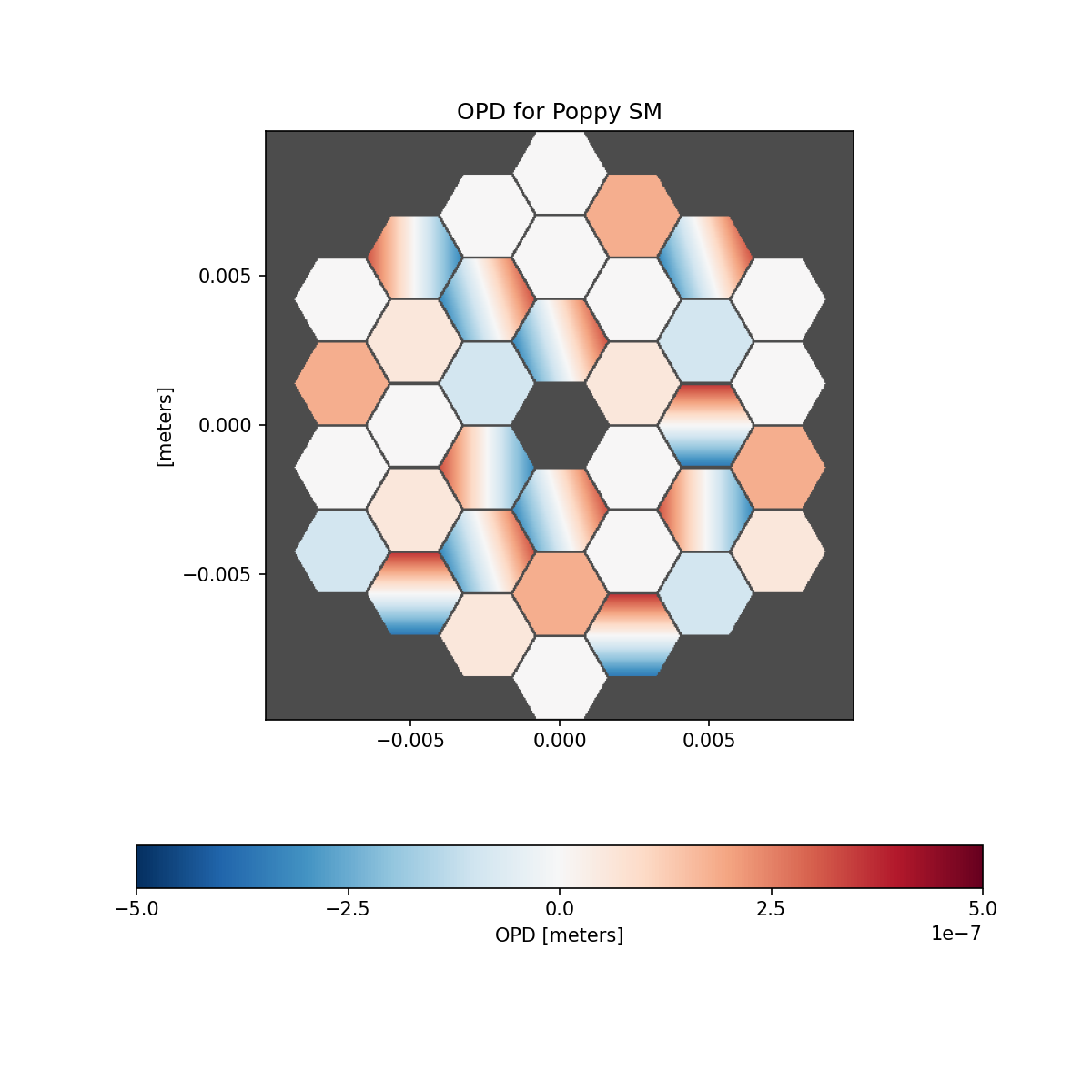

# Poppy
plt.figure(figsize=(8,8))
psm.display(what='opd')
plt.show()
../../_images/output_28_0.png ../../_images/output_28_1.png

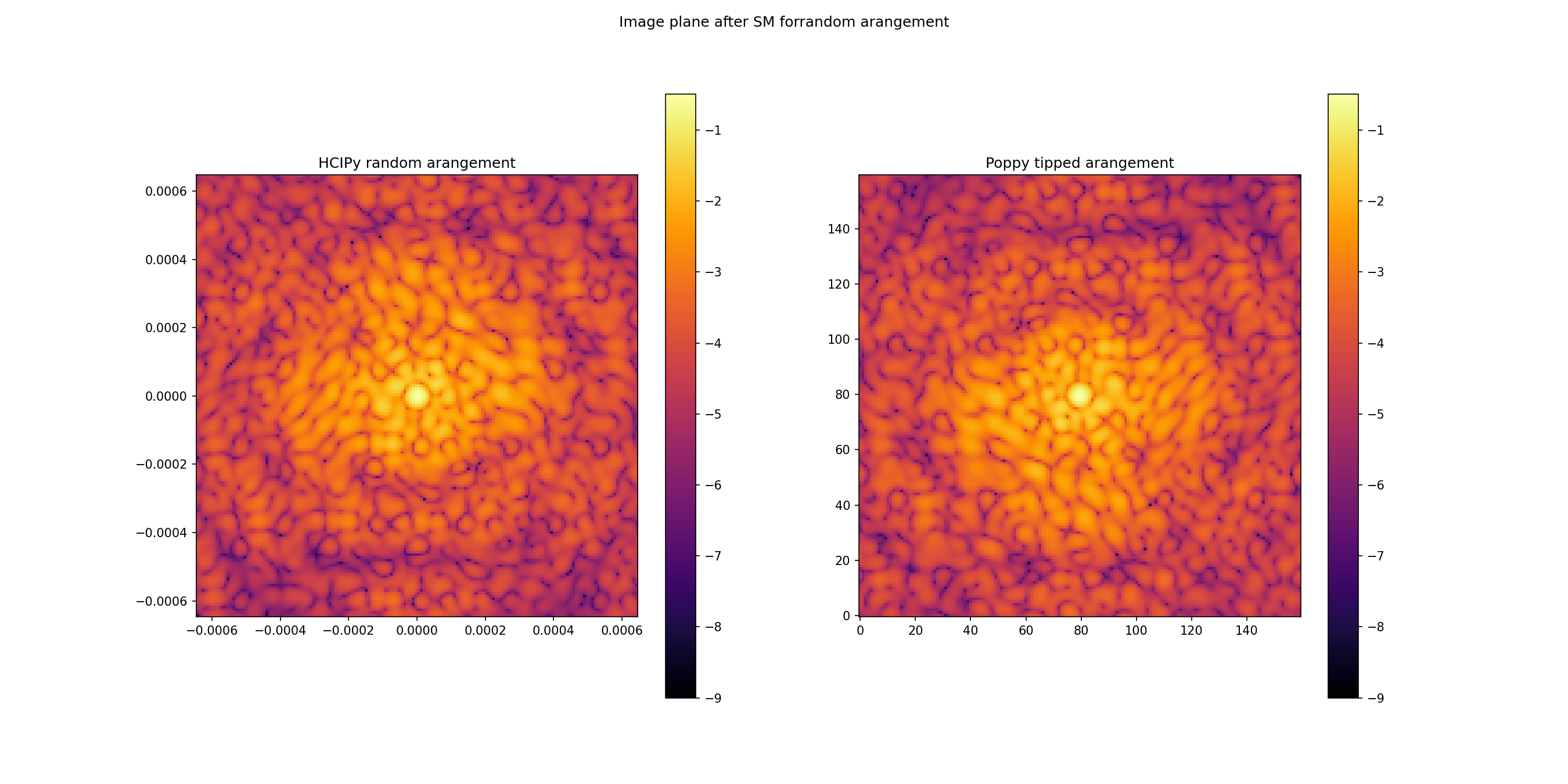

### Propagate to image plane
## HCIPy
# Propagate from pupil plane through SM to image plane
im_pistoned_hc = prop(hsm(wf)).intensity

## Poppy
# Calculate the PSF
psf = osys.calc_psf(wavelength)

# Get the PSF as an array
im_pistoned_pop = psf[0].data
### Display intensity of both cases image plane
plt.figure(figsize=(18, 9))
plt.suptitle('Image plane after SM forrandom arangement')

plt.subplot(1, 2, 1)
hcipy.imshow_field(np.log10(im_pistoned_hc / norm_hc), cmap='inferno', vmin=-9)
plt.title('HCIPy random arangement')
plt.colorbar()

plt.subplot(1, 2, 2)
plt.imshow(np.log10(im_pistoned_pop / norm_pop), origin='lower', cmap='inferno', vmin=-9)
plt.title('Poppy tipped arangement')
plt.colorbar()
plt.show()
../../_images/output_30_0.png
